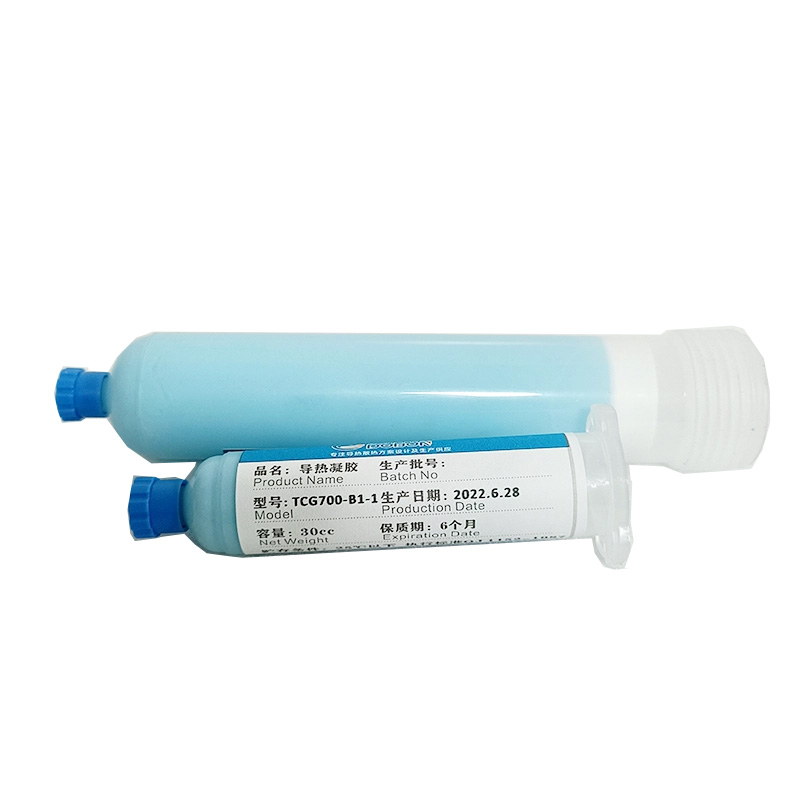

1W Single-Component Thermal Gel for CPU/GPU Cooling

Color: pink, blue, grey
Specification: 30CC, 50CC, 100CC or Customizable
Application: Electrical Insulation
Material: Silicone, Thermal Conductive Powder
Thermal Rating: -40~150ºC

TCG Series

1K Thermal Gel Gap Filler

TCG series one-component thermal conductive gel products are a kind of high-performance silicone heat-conducting gel, which is made of silica gel and high-performance ceramic powder. It has the advantages of high compression, low thermal resistance and good conformability. It can be used for dispensing operation with high efficiency.

Product Features

● Soft, with excellent compressibility and excellent fit.

● Excellent heat dissipation effect and good temperature resistance

● Automation equipment is applicable, efficient and fast

Technical Data Sheet

Test Item	Unit	TCG200	TCG300	TCG400	TCG500	TCG600	TCG700	TCG800	Test Method
Component	/	Silicone gel+thermal conductive powder
Color	/	Pink	Pink	Pink	Pink	Grey	Blue	Grey	Visual
Specific gravity	g/cc	2.7±0.2	3.1±0.2	3.2±0.2	3.3±0.2	3.3±0.2	3.4±0.2	3.4±0.2	ASTM D2196
Flow rate	(30CC hose 0.6MPa	35	55	35	65	65	21	15-25	/
Thermal impedance	℃·in/W	0.4	0.34	0.31	0.28	0.21	0.19	0.16	ASTM D792
Temperature range	℃	-40~150	-40~150	-40~150	-40~150	-40~200	-40~150	-40~150	/
Breakdown voltage	Kv/mm	≥5.0	≥5.0	≥5.0	≥5.0	≥5.0	≥5.0	≥5.0	ASTM D149
Volume resistivity	Ω.cm	≥1*10¹²	≥1*10¹²	≥1*10¹²	≥1*10¹²	≥1*10¹²	≥1*10¹²	≥1*10¹²	ASTM D257
Dielectric constant	@1MHz	5.0	6.0	7.0	7.0	7.0	8.0	7.0	ASTM D150
Fire rating	/	V-0	V-0	V-0	V-0	V-0	V-0	V-0	UL 94
Thermal conductivity	W/m-k	2.0±0.2	3.5±0.3	4.0±0.4	5.0±0.5	6.0±0.6	7.0±0.7	8.0±0.8	ASTM D5470

Package and Storage

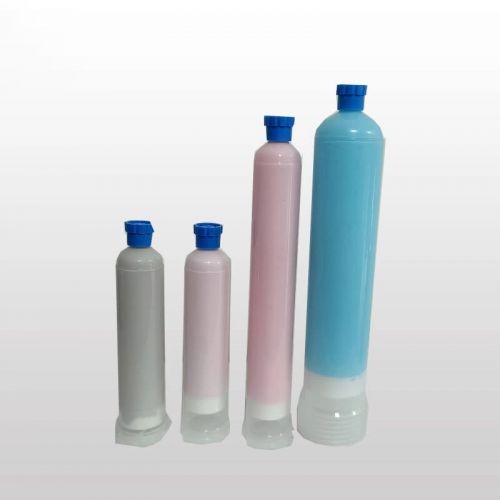

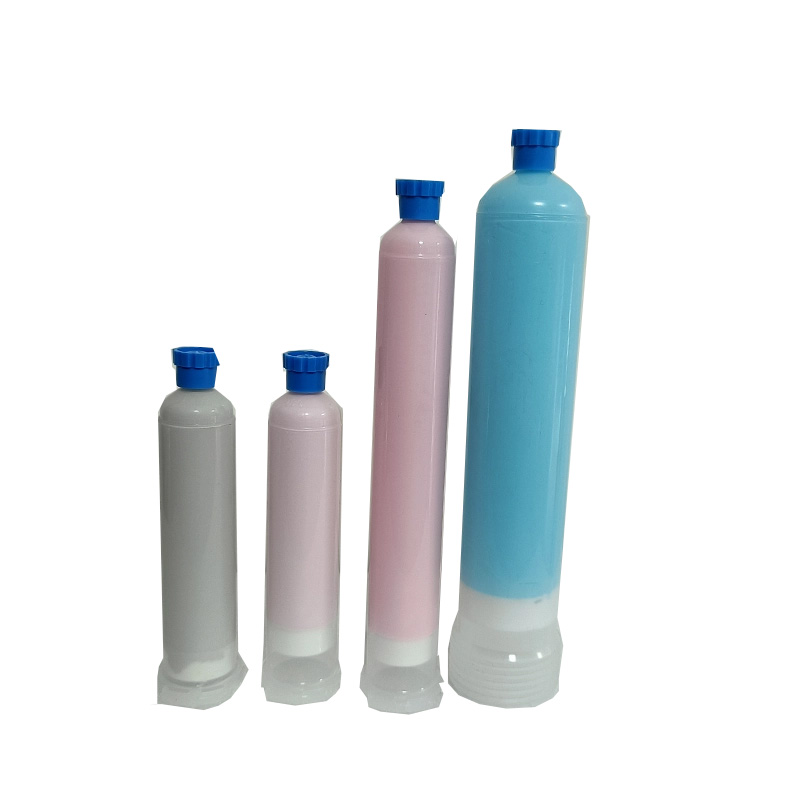

● Packaging specifications: 30CC, 50CC, 100CC, 2.6L/piece, or canned and customized.

● Shelf life: 6 months, storage conditions: temperature: 15℃
